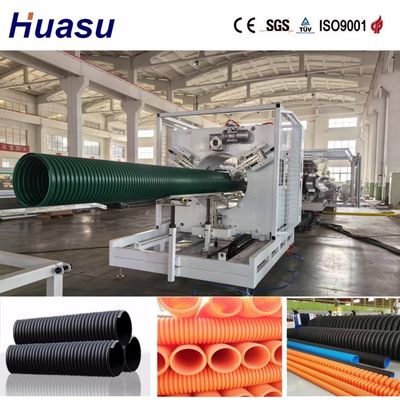

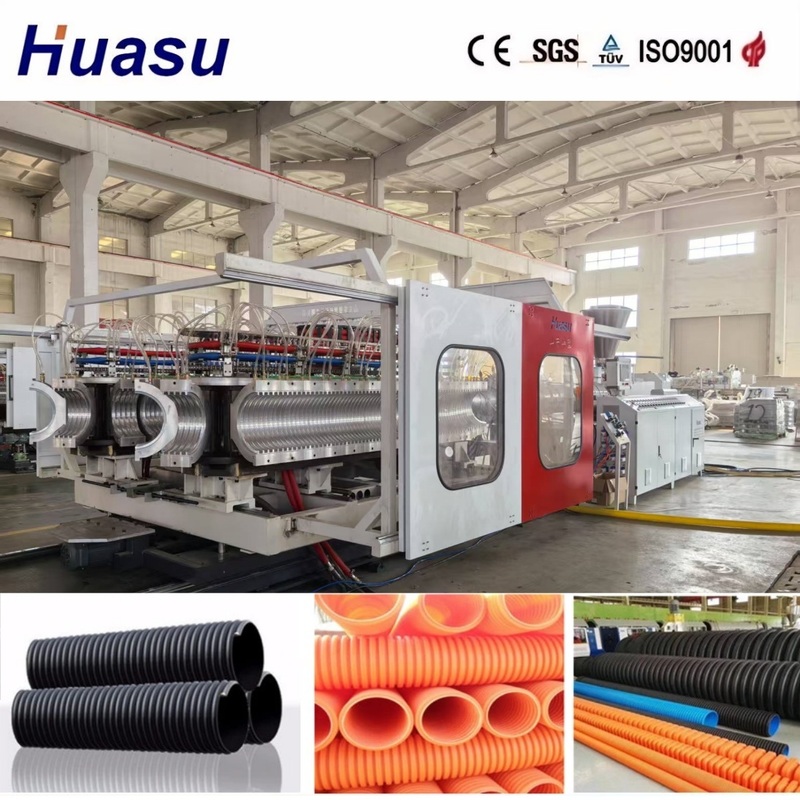

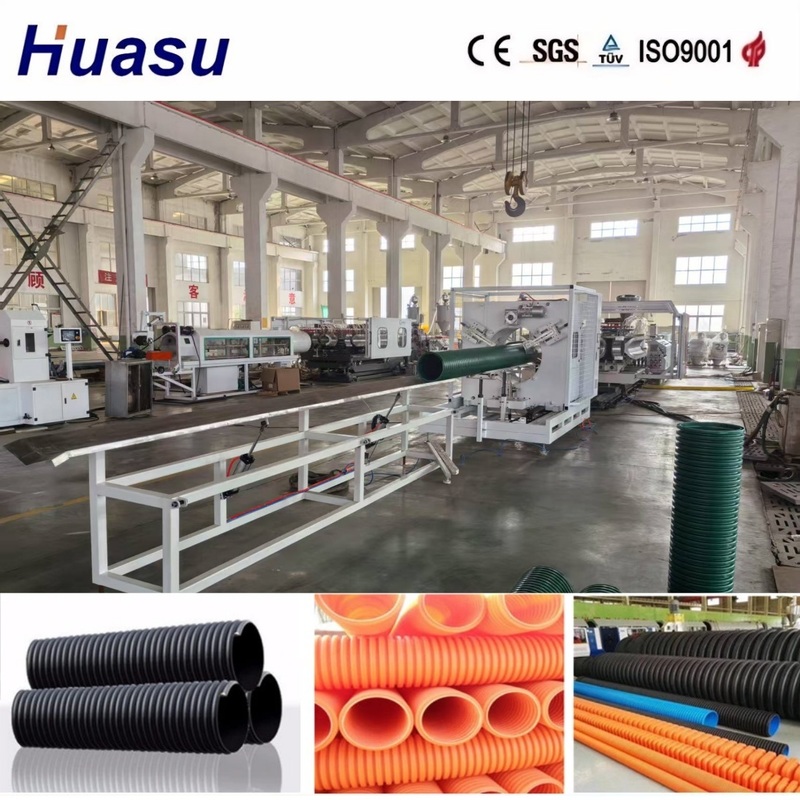

Complete PVC Corrugated Pipe Plant for Single Wall Pipes with 300mm to 1600mm Diameter Range and High Productivity
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 원료 | PE, PP, HDPE/PP, PVC | 특징 | 높은 생산성, 경쟁 가격, 에너지 절약, 자동 |
|---|---|---|---|
| 전기 부품 | 지멘스 | 파이프 범위 | 32-1600mm |
| 유형 | 표준 또는 사용자 정의 | 파이프 레이어 | 단일 벽, 이중 벽, 멀티 벽 |
| 사용 | 플라스틱 파이프 제작 | 냉각 유형 | 공기 또는 물 냉각 |
| 강조하다 | Complete PVC Corrugated Pipe Plant,300mm to 1600mm Diameter PVC Pipe Extrusion Line,High Productivity Corrugated Pipe Production Line |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
Complete PVC Corrugated Pipe Plant for Single Wall Pipes (300mm - 1600mm Diameter)

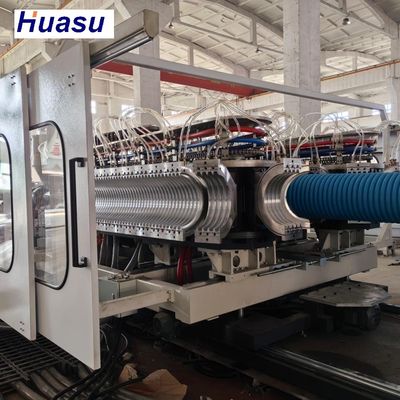

The PVC/PE/MPP corrugated pipe production line features dual single-screw extruders for simultaneous extrusion of inner and outer plastic layers. Our precision temperature control system and optimized screw design ensure uniform plasticization and stable material flow for high-speed production.
The pipe head incorporates a precision flow channel design that efficiently laminates inner and outer layers, guaranteeing uniform wall thickness, high concentricity, and superior resistance to delamination. The modular configuration enables rapid switching between multiple pipe diameters while maintaining dimensional accuracy and structural stability at high production speeds.
This third-generation double wall corrugated pipe line from Shandong HUASU delivers 20-40% increased output and production speed compared to previous models. The system features integrated online belling for immediate pipe forming and utilizes Siemens PLC control for efficient operation management.
Key Features
Pressure water-cooling for mold blocks significantly increases production speed
Low energy consumption design reduces operational costs
High-efficiency vacuum system ensures flawless pipe formation
Precision mold temperature control enhances internal and external pipe quality
Quick-change mold system compatible with multiple production lines
Fully automated extrusion line operation
Synchronized corrugator and extruder control for manufacturing consistency
Hardened screws and barrels for extended equipment lifespan
Comprehensive remote service support
Technical Specifications
| Raw Material | PE, PP, HDPE/PP, PVC |
|---|---|
| Type | Standard or Customized |
| Cooling Type | Air or Water Cooling |
| Pipe Range | 32-1600mm |
| Application | Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit |
| Max. Line Speed | 3-15m/min |
| Electric Components | Siemens |
| Features | High Productivity, Competitive Price, Energy Saving, Automatic |
| Control Concept | PLC |
| Used For | Plastic Pipe Manufacturing |
Applications
Our advanced pipe production system is engineered for manufacturing high-quality plastic pipes used in water supply networks, drainage systems, and electrical cable protection. The machine produces durable, precision-engineered pipes that meet stringent industry standards for municipal engineering projects, underground sewage systems, and utility infrastructure.
