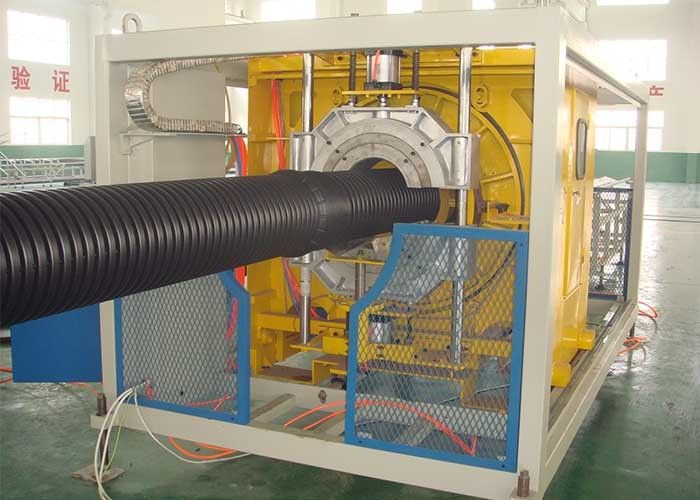

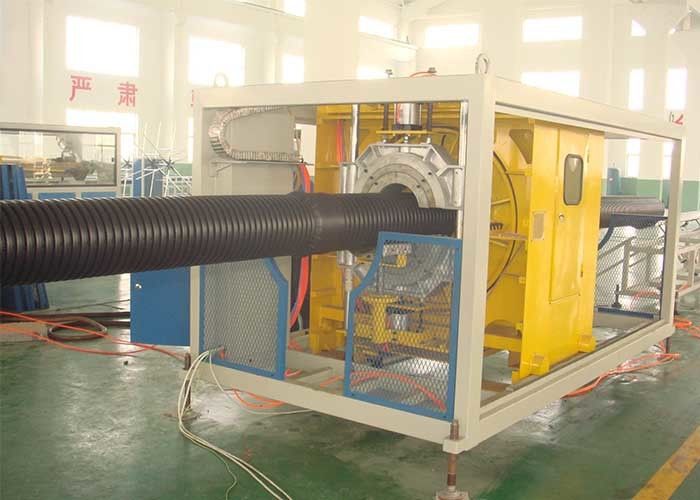

Double Wall Corrugated Pipe Production Line Inner Diameter 110mm 250mm for Hose

SGB250 (Inner Diameter Φ110-250mm) Double Wall Corrugated Pipe Production Line Hose Production Line

SGB250(inner diameter Φ110-250mm) double wall corrugated pipe production line has two single-screw extruder.

It has a dual-channel structure and nitriding polishing head.

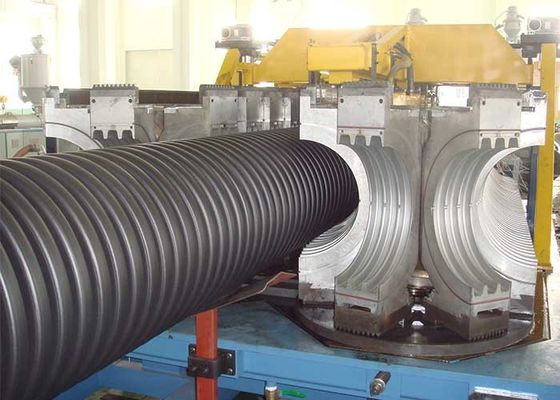

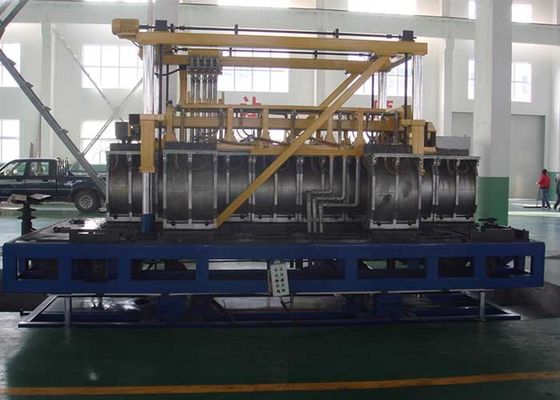

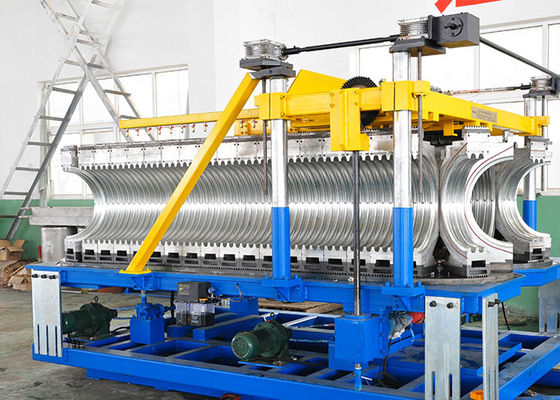

The forming machine adopts horizontal structure, chain drive design, advanced water cooling system, vacuum forming system, automatic lubrication system and advanced double-layer on-line expansion function.

The material of the molds is aluminum alloy. The complete production line uses the German Siemens production of professional PLC control system. It has a high degree of automation, reliable operation, easy operation and so on.

The production line uses HDPE / PP as raw materials. The inner wall of the double wall corrugated pipe produced by this production line is very smooth and flat.

And the outer wall is trapezoidal corrugated shape. This kind of double wall corrugated pipe has the characteristics of good corrosion resistance, high insulation, small flow resistance etc. as the ordinary plastic pipe, but also because of special inner and outer wall hollow ring structure, it has the advantages of high rigidity, light weight, high pressure resistance, good toughness, abrasion resistance, impact resistance, not easy damage, convenient construction, low installation cost, long service life etc.

The double wall corrugated pipe is generally connected by the expansion socket and the sealing ring. This can effectively prevent the impact of thermal expansion and contraction. The double wall corrugated pipe is widely used in the fields of highway, railway roadbed, subway engineering, waste landfill, tunnel, green belt, sports field and high water content caused by the slope protection and other drainage areas.
