Bridge Prestressed Cable Protection Corrugated Pipe Extrusion Line
| 브랜드 이름 | HUASU |
|---|---|
| 인증 | CE,ISO,UL,QS,GMP |
| Model Number | SBG |
| Minimum Order Quantity | 1 Line |
| 가격 | USD10k-1000k |
| Packaging Details | STANDARD Package |
| Delivery Time | 90day |
| Payment Terms | TT,LC |
| Supply Ability | 100 Line |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 파이프 지름(MM) | 32-1600mm | 다이 헤드 | 이중층 나선형 공동 추출 |
|---|---|---|---|
| 파이프 기능 | 케이블 보호 커버, 의료 전송 파이프 가스 전달, 물 전달 | 최대 속도 (m/min) | 1.5-5m/min |
| HDPE 출력 | 40-1600kg/h | 구조 골판지 | 수평 구조 골판지, 쉬운 변화 생산 크기 |
| 형성 | 플라스틱 성형 | 냉각 시스템 | 완전한 내부 냉각 시스템. |
| 강조하다 | Cable Protection Pipe Extrusion Line,Corrugated Pipe Extrusion Line,Bridge Prestressed Pipe Extrusion Line |
||
제품 설명

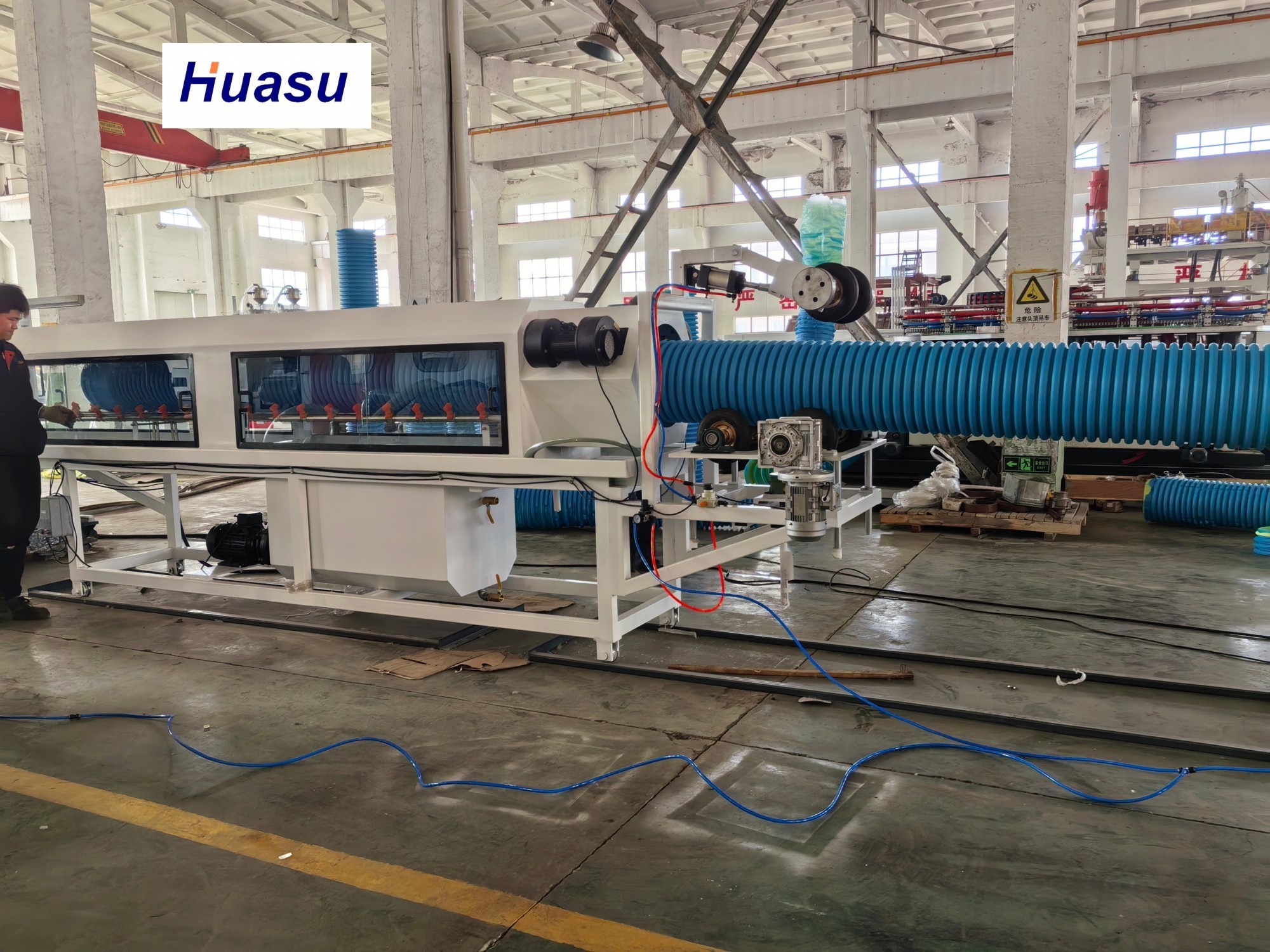

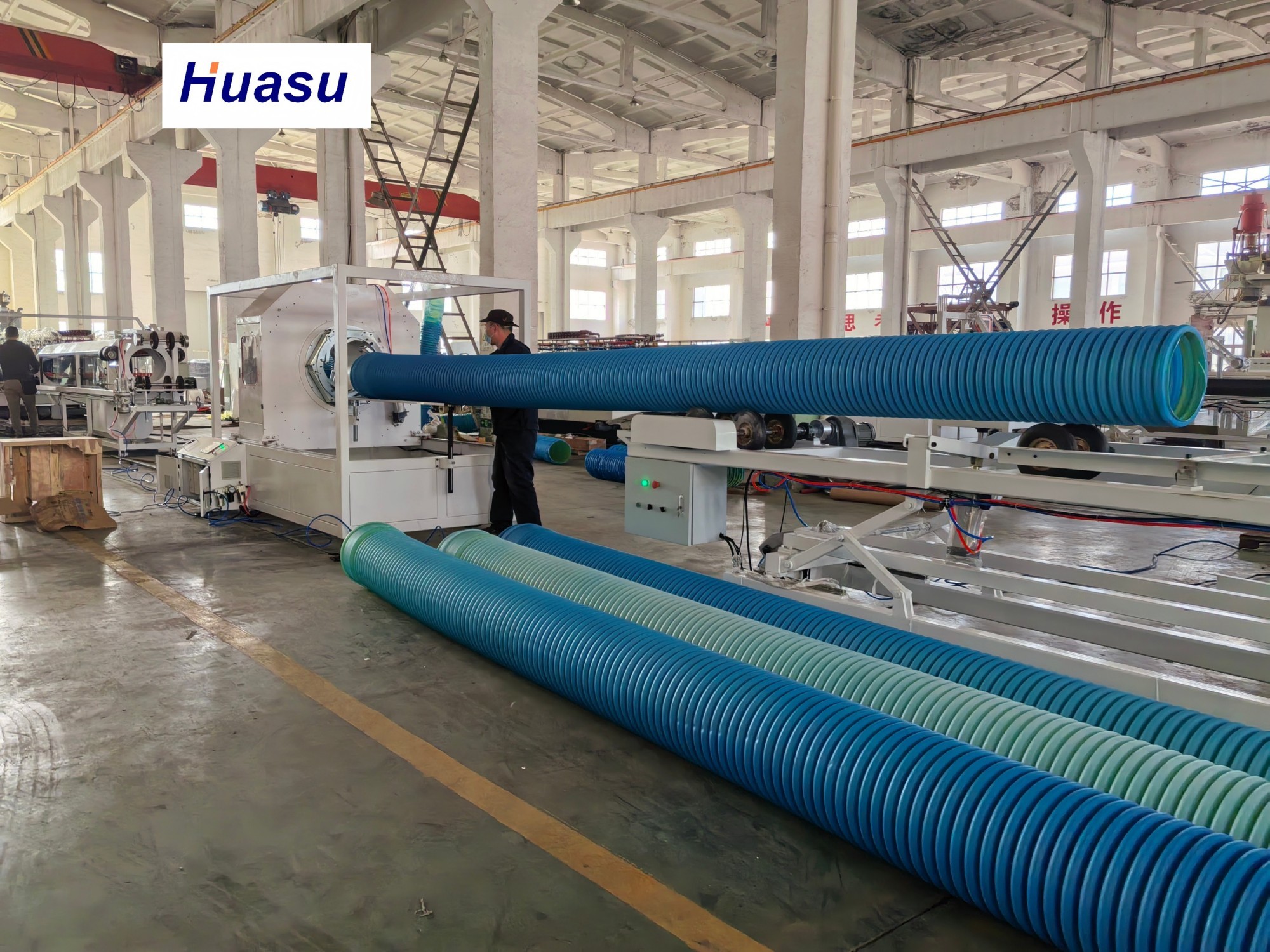

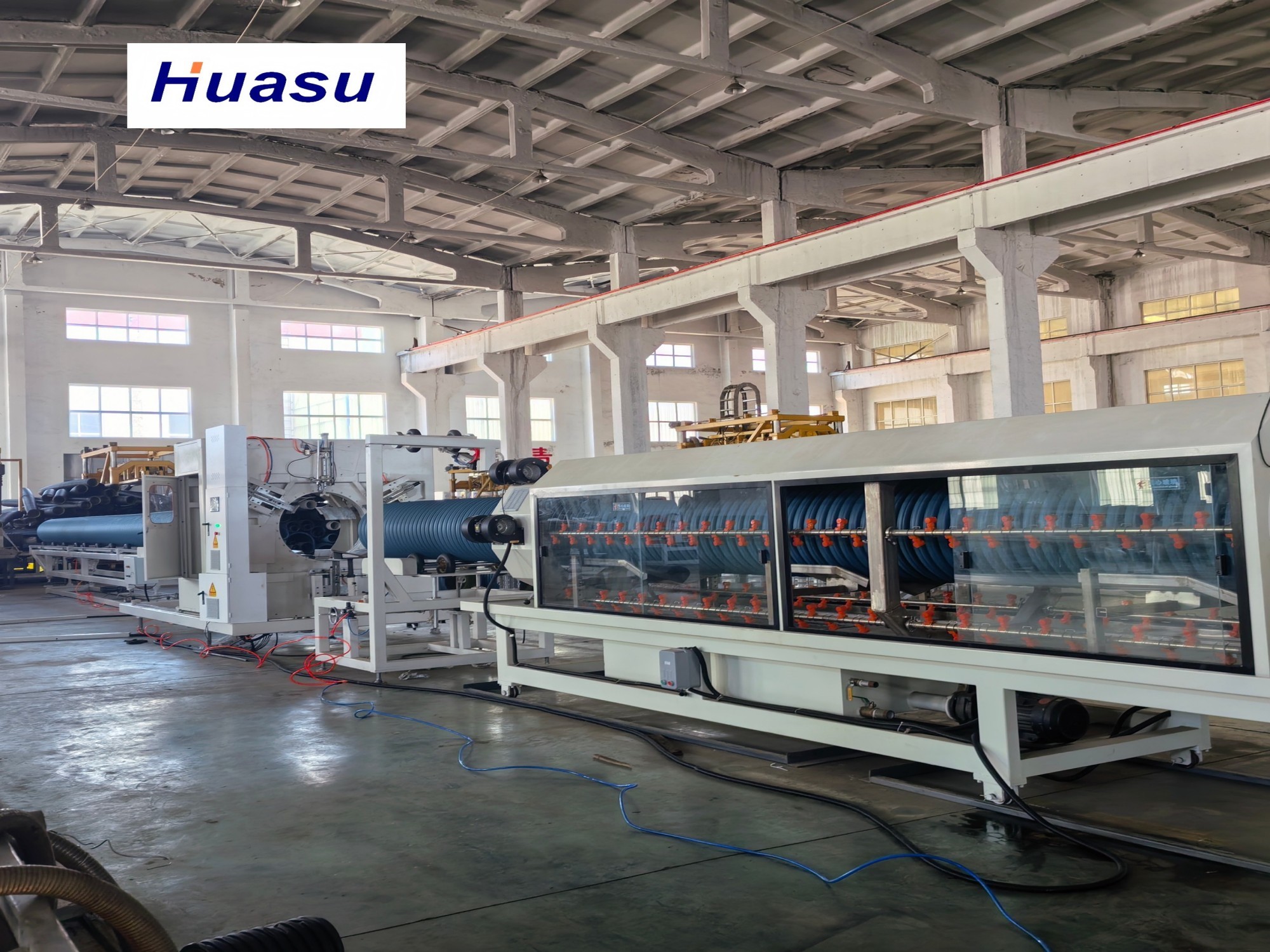

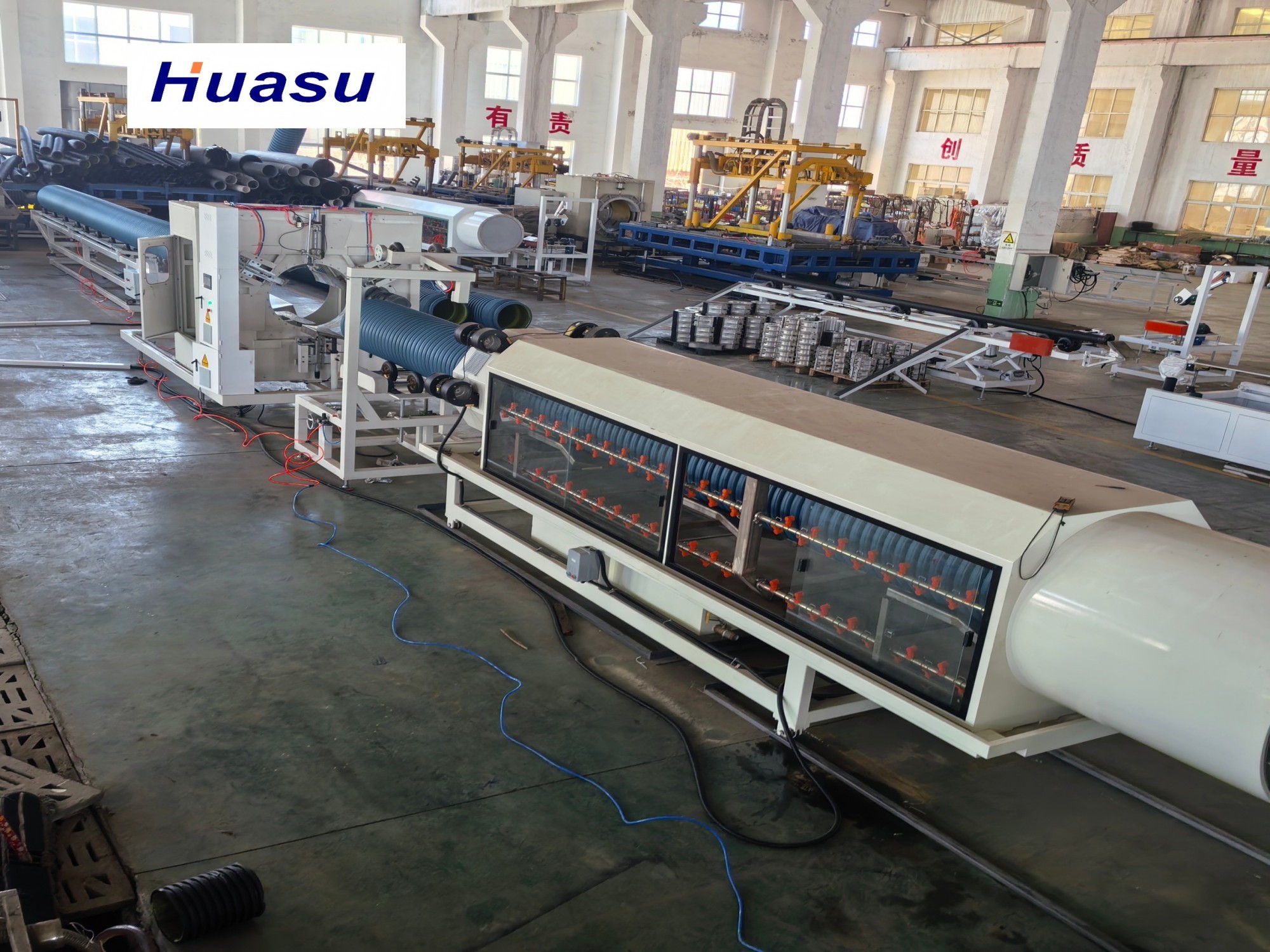

Bridge Prestressed And Cable Protection Corrugated Pipe Extrusion Line
Product Description:
The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products.
Adopts Siemens PLC system.
Features:
The newly designed closed molding machine is equipped with a special high-efficiency cooling system tailored for shaping aluminum modules, significantly enhancing the cooling efficiency during the production of corrugated pipe products.

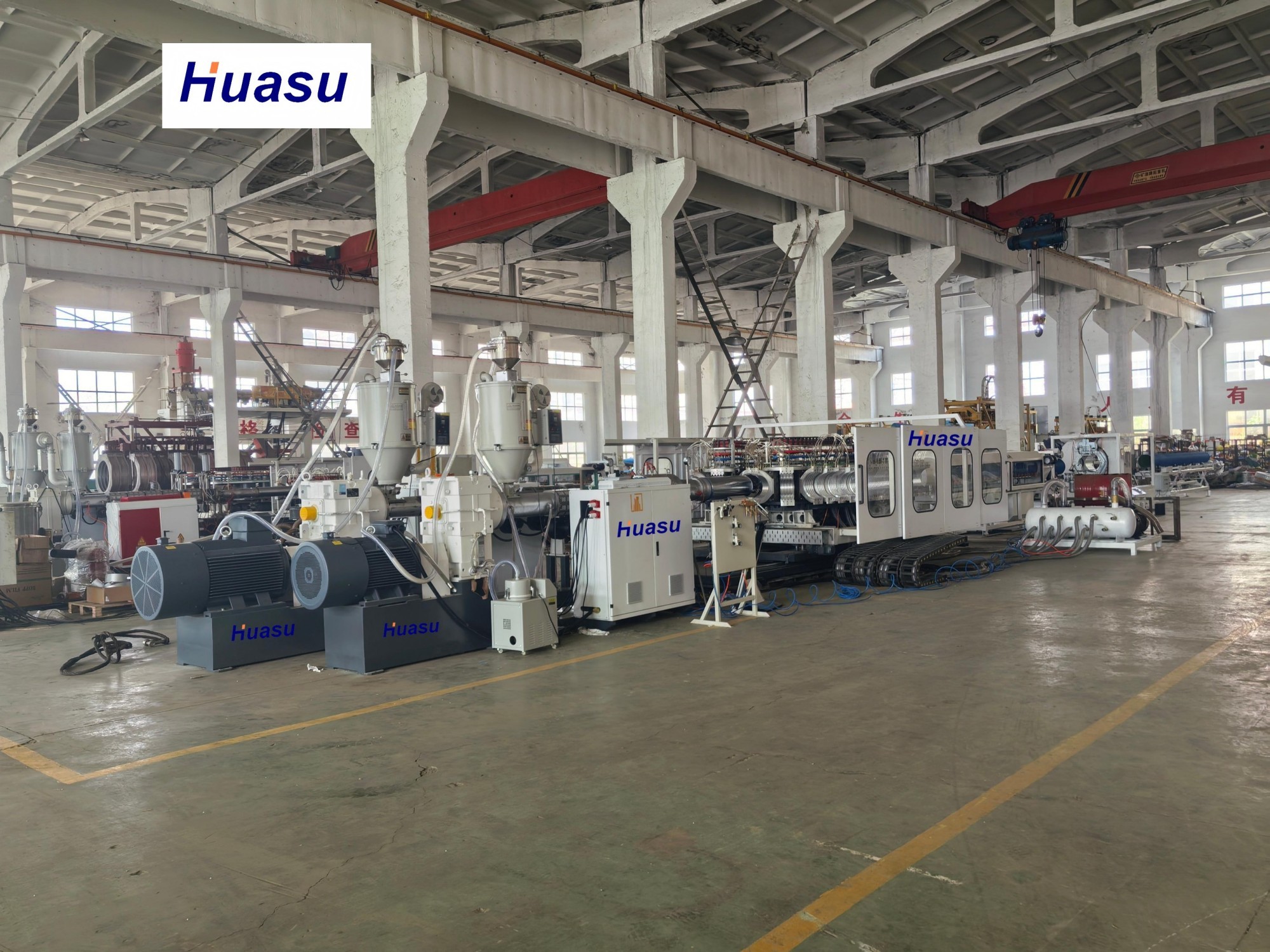

It is supported by a high-speed, high-output single-screw extrusion machine featuring a professionally designed corrugated pipe extrusion mold, enabling large-scale, stable extrusion.

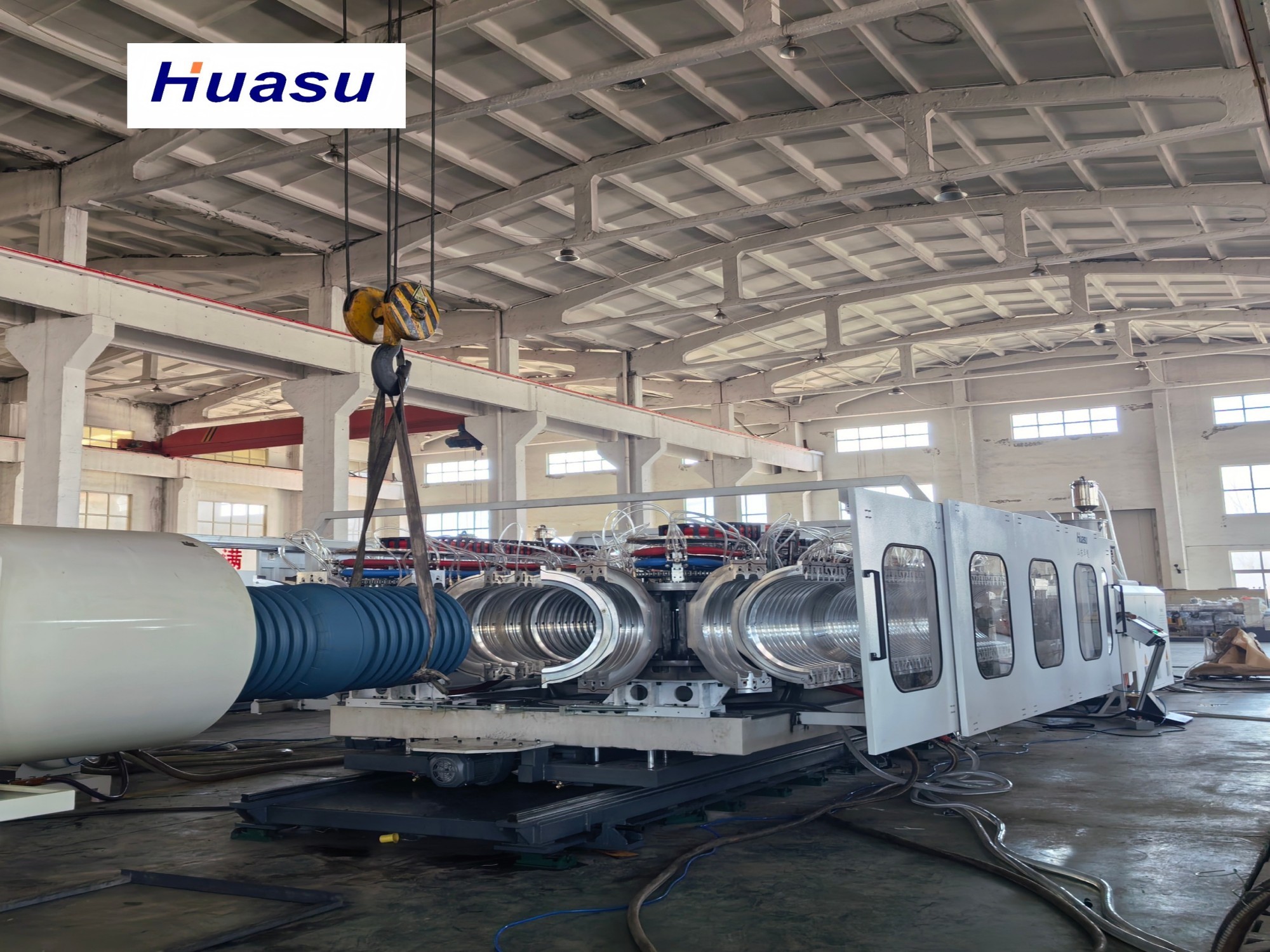

The modules exhibit good interchangeability. The aluminum forming module is constructed with LY12 high-quality alloy aviation aluminum material containing at least 5% copper. Utilizing precision pressure casting process, the high-density material is free from light pores and resistant to deformation during long-term use. Various module waveform schemes can be customized according to user requirements.
Additionally, the machine is complemented by an automatic DWC cutter with computer control for accurate cutting position, stable operation, and user-friendly interface for ease of operation.
Technical Parameters:
| Technical Parameter | Specification |
|---|---|
| Total power(kw) | 200-1000kw |
| Max speed (m/min) | 1.5-5m/min |
| Structure corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Forming | Vacuum Forming |
| Die head | Double-layer Spiral Co-extrusion |
| Pipe function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Cooling system | Complete Inner Cooling System |
| HDPE output | 40-1600kg/h |
| Pipe diameter(mm) | 32-1600mm |
Applications:
The corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm. These corrugated pipes find diverse applications including serving as cable protection covers and medical transfer pipes, particularly for smaller sizes. Additionally, they are utilized for gas and water transfers in larger corrugated pipe sizes.
