PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od
| 브랜드 이름 | HUASU |
|---|---|
| 인증 | CE,ISO,UL,QS,GMP |
| Model Number | SBG |
| Minimum Order Quantity | 1 Line |
| 가격 | USD10k-1000k |
| Packaging Details | STANDARD Package |
| Delivery Time | 90day |
| Payment Terms | TT,LC |
| Supply Ability | 100 Line |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 최대 속도 (m/min) | 1.5-5m/min | 총 전력(KW) | 200-1000kw |
|---|---|---|---|
| 파이프 지름(MM) | 32-1600mm | 구조 골판지 | 수평 구조 골판지, 쉬운 변화 생산 크기 |
| HDPE 출력 | 40-1600kg/h | 냉각 시스템 | 완전한 내부 냉각 시스템. |
| 형성 | 플라스틱 성형 | 다이 헤드 | 이중층 나선형 공동 추출 |
| 강조하다 | PVC Corrugated Pipe Production Line,1600mm PVC Corrugated Pipe Production Line,32mm id corrugated pipe extruder |
||
제품 설명
PVC Corrugated pipe machines/Production Line for size from 32mm i.d. up 1600mm o.d.
Product Description:
The corrugated pipeline represents the 3rd generation of enhanced products developed by Shandong HUASU. Compared to its predecessor, the extruder output and pipe production speed have been significantly boosted by 20-40%. Through online belling, the performance of the manufactured corrugated pipes is assured.
This innovative product incorporates the Siemens PLC system, ensuring high-quality performance and efficient operations. The improved design and advanced technology utilized in the production process guarantee enhanced productivity and reliability.
Features:

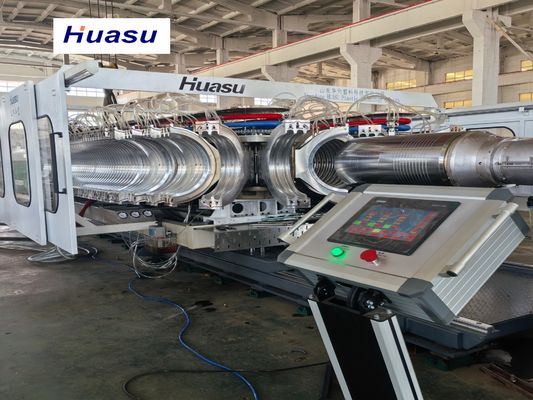

The newly designed closed molding machine is equipped with a special high-efficiency cooling system designed for forming aluminum modules. This system significantly enhances the cooling efficiency during the production of corrugated pipe products.
Additionally, a high-speed, high-output single-screw extrusion machine is utilized, accompanied by a professional design of the corrugated pipe extrusion mould to enable large-scale stable extrusion.
This system boasts good modularity, with the aluminum forming module constructed using LY12 high-quality alloy aviation aluminum material containing a copper content of at least 5%. Through precision pressure casting, the material ensures high density and is free of light pores, resisting deformation even after long-term use. Furthermore, various module waveform schemes can be customized based on user requirements.

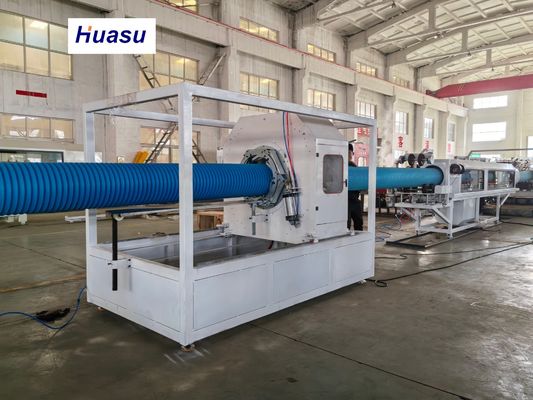

Completing the setup is an automatic DWC cutter with computerized control, ensuring precise cutting positions, stable operation, and user-friendly operation.
Technical Parameters:
| Pipe diameter(mm) | 32-1600mm |
| Max speed (m/min) | 1.5-5m/min |
| Pipe function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Cooling system | Complete Inner Cooling System |
| HDPE output | 40-1600kg/h |
| Forming | Vacuum Forming |
| Structure corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Total power(kw) | 200-1000kw |
| Die head | Double-layer Spiral Co-extrusion |
Applications:
Corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm. These pipes find versatile applications such as cable protection covers and medical transfer pipes for small sizes, as well as for gas and water transfer in larger sizes.
