원래 장소: | 중국 |
브랜드 이름: | Shandong Huasu Brand |
인증: | CE, ISO9001 |
모델 번호: | 500 밀리미터 지름 투기 |
최소 주문 수량: | 1개 세트 |
---|---|
가격: | $400,000.00/set and negotiable |
포장 세부 사항: | 표준은 패키징합니다 또는 필요에 따라 |
배달 시간: | 40 작업 일 |
지불 조건: | 전신환 |
공급 능력: | 40은 / 달에서 설정합니다 |
관 직경: | 200-500mm | 재료: | PE / PP 입자 |
---|---|---|---|
맥스 압출량: | 600kg/h | 확장 모드: | 벨링 ON 상태 라인 |
거푸집 블럭: | 48 쌍 | 코르게이터 중량: | 8000KG |
하이 라이트: | Horizontal DWC Pipe Machine,1250mm DWC Pipe Machine |

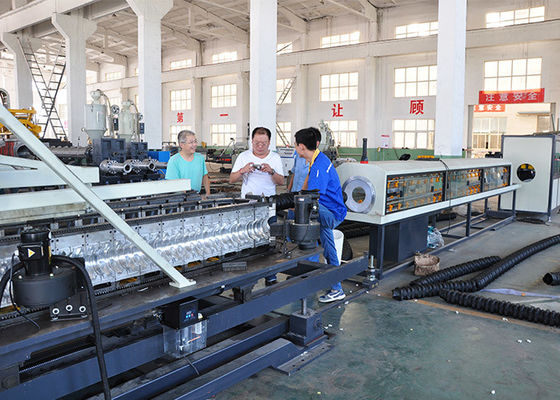

SGB500 double-wall corrugated pipe production line is the Shandong Huasu plastic Technology Co., Ltd. according to the needs of the market, absorbing the same industry at home and abroad advanced technology in the field of plastic extrusion made the latest research results. The whole production line is suitable for high speed extrusion of HDPE, LDPE, PP and other raw materials. The production line adopts direct extrusion (dual coextrusion) forming processing and man-machine interface control system. It has high degree of automation, reliable quality and stable operation. It is famous in the world.
The production line uses HDPE / PP as raw materials. The inner wall of the double wall corrugated pipe produced by this production line is very smooth and flat. And the outer wall is trapezoidal corrugated shape. This kind of double wall corrugated pipe has the characteristics of good corrosion resistance, high insulation, small flow resistance etc. as the ordinary plastic pipe, but also because of special inner and outer wall hollow ring structure, it has the advantages of high rigidity, light weight, high pressure resistance, good toughness, abrasion resistance, impact resistance, not easy damage, convenient construction, low installation cost, long service life etc. The double wall corrugated pipe is generally connected by the expansion socket and the sealing ring. This can effectively prevent the impact of thermal expansion and contraction. The double wall corrugated pipe is widely used in the fields of highway, railway roadbed, subway engineering, waste landfill, tunnel, green belt, sports field and high water content caused by the slope protection and other drainage areas.
Model | SGB800 | SGB600 | SGB500 | SGB250 | SGB160 |
Structure Form | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
Materials | Particle / powder | Particle / powder | Particle / powder | Particle / powder | Particle / powder |
Applicable Raw Materials | HDPE/FRPP/PVC | HDPE/FRPP/PVC | HDPE/FRPP/PVC | HDPE/FRPP/PVC | HDPE/FRPP/PVC |
Pipe Diameter Range | 225-800mm | 250-600mm | 200-500mm | 110-250mm | 75-160mm |
Max Extrusion Output | 850kg/h | 700kg/h | 600kg/h | 350kg/h | 200kg/h |
Expansion Mode | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint |
Forming Speed | 0.25-3m/min | 0.25-4m/min | 0.25-4m/min | 0.5-5m/min | 0.6-5m/min |
Centre Height | 1600mm | 1600mm | 1150mm | 1150mm | 1000mm |
Number of Mold Blocks(pairs) | 32 | 32 | 40 | 48 | 48 |
