원래 장소: | 중국 |
브랜드 이름: | Shandong Huasu Brand |
인증: | CE, ISO9001 |
모델 번호: | 250mm 직경 사양 |
최소 주문 수량: | 1개 세트 |
---|---|
가격: | $200,000.00/set and negotiable |
포장 세부 사항: | 표준은 패키징합니다 또는 필요에 따라 |
배달 시간: | 40 작업 일 |
지불 조건: | 전신환 |
공급 능력: | 40은 / 달에서 설정합니다 |
장점: | 일본을 위한 특수한 설계 | 관 직경: | 50-250MM |
---|---|---|---|
더 많은 상술: | 이용 가능합니다 | 회사: | 산둥 후아수 플라스틱 기술 주식회사. |
생산 경험: | 19년 | ||
하이 라이트: | ISO9001 Sewerage Corrugated Pipe Extrusion Line,Streets Drainage Corrugated Pipe Extrusion Line,Double Wall Corrugated Pipe Machine |

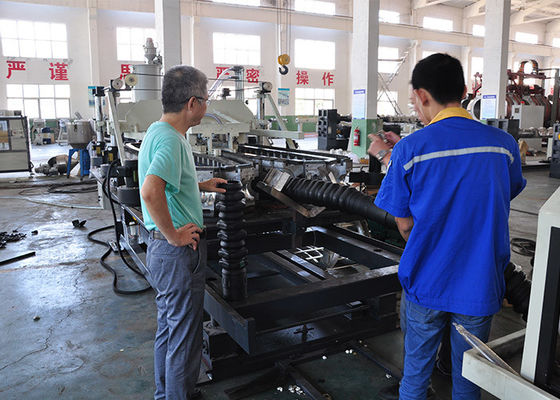

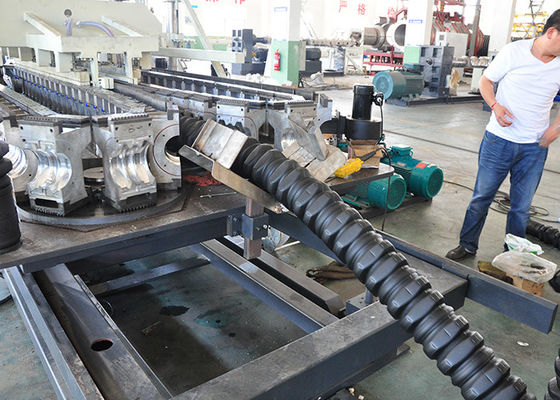

Double Wall Corrugated Pipe Extrusion Line For Making Sewerage, Drainage Pipes For Fields, Streets
It is fully computer controlled,automatic production line (Ø110-Ø250). It has features of high and stable output capacity as well as highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can bu easily changed and they are equipped with air or water cooling system. The production line can also be equipment with siemens company SIEMENS control system.
The use of the final product:
Storm water and sewerage, drainage pipes for fields, streets, roads, squares and buildings,conveyor pipes, protection pipes for TV, glassfiber, telephone, electricity, IT and computer;protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.
Model | SGB250 | SGB110 |
Structure Form | Horizontal | Horizontal |
Applicable Raw Materials | HDPE/PP/PVC | HDPE/PP/PVC |
Pipe Diameter Range | 110-250mm | 50-110mm |
Max Extrusion Output | 350kg/h | 300kg/h |
Expansion Mode | Belling-on-line, double-wall socket joint |
No expander |
Forming Speed | 0.5-5m/min | 0.5-5m/min |
Centre Height | 1100mm | 1100mm |
Number of Mold Blocks(pairs) | 48 | 50 |
