원래 장소: | 중국 |
브랜드 이름: | Shandong Huasu Brand |
인증: | CE, ISO9001 |
모델 번호: | SBG 600 |
최소 주문 수량: | 1개 세트 |
---|---|
가격: | $362,000.00/set |
포장 세부 사항: | 표준은 패키징합니다 또는 필요에 따라 |
배달 시간: | 40 작업 일 |
지불 조건: | 전신환 |
공급 능력: | 40은 / 달에서 설정합니다 |
전시실 위치: | 미국, 파키스탄, 태국 | 마케팅 타입: | 큰 지름 파형관 압출 라인 |
---|---|---|---|
타입: | 파형관 생산 라인 | 전압: | 380v 50HZ 3P, 380V 50HZ ; 220V 60HZ |
인증: | CE | 가공 유형: | 압출기 |
하이 라이트: | 1500mm Corrugated Pipe Extrusion Line,3P Corrugated Pipe Extrusion Line,Double Wall Corrugated Pipe Machinery |

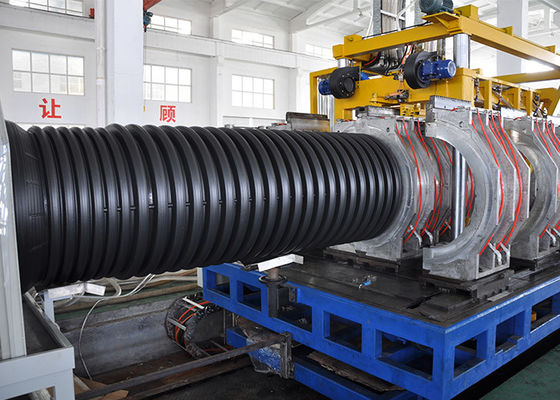

Big Corrugated Pipe (200mm-1500mm) Extrusion Line In China With Good Price And Good Quality
Typical Feature
● Die head has been specially designed to aim at two-layer online belling structure and feed material by double-spiral co-extrusion structure.

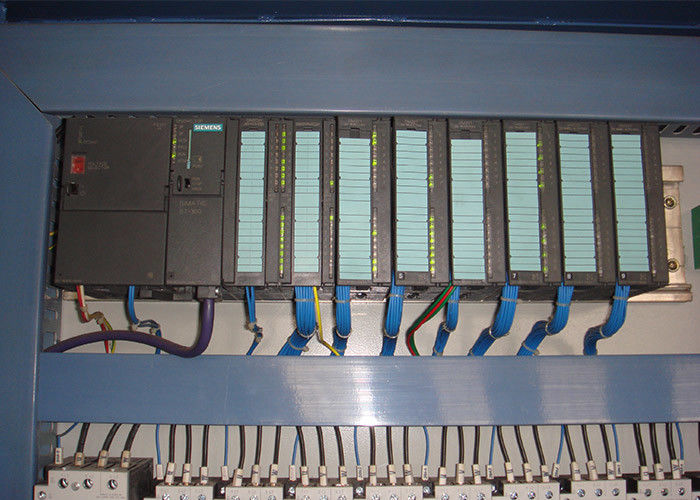

● Big screen LCD human-computer interface system, CAN data bus technology can achieve full production process supervision and management.
● The corrugated pipe production line is composed of single/double screw extruder, forming machine, mold, air/water cooling device, counter and coiler. It can continuously extrude various sizes of small corrugated pipes;
● With special structure design for screw and mold, which not only ensure the replacement of the mold is convenient and reliable, but also It solves the problem that the screw barrel is easy to wear and difficult to form. The production line is fast, the operation is stable, and the control is simple and easy to operate;

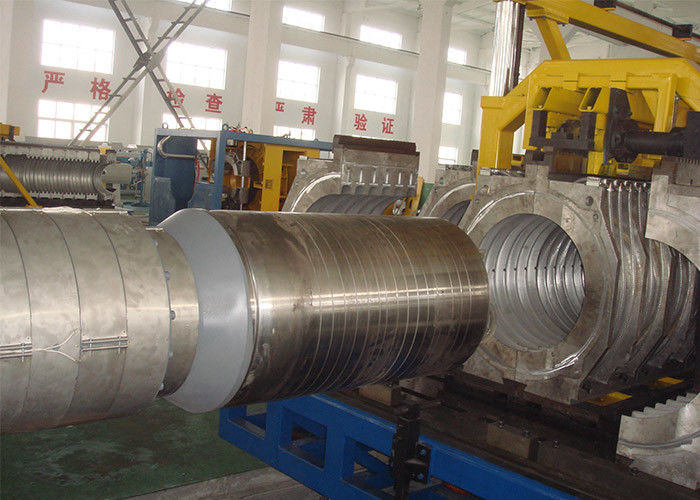

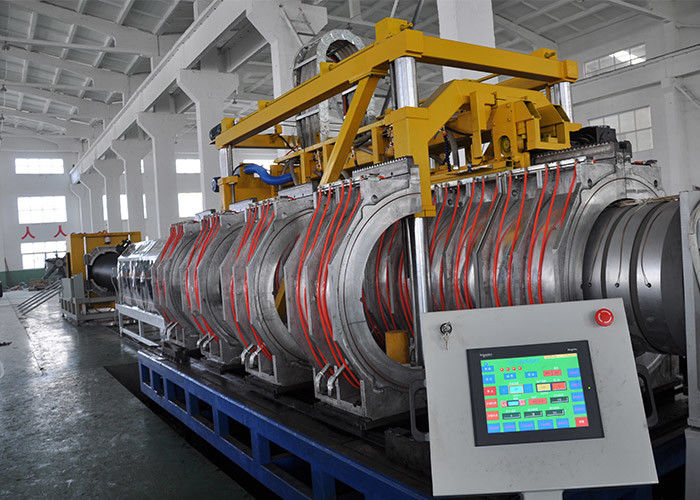

● The forming machine is in a closed structure and can be vacuum formed. The molding module reciprocates in a integrally closed molding tunnel, and the forming tunnel is a sandwich design with the watering cooling inside the jacket. The molding module has no connection with each other, which shortens the time for replacing the molds when changing the sizes to keep high production speed and fast cooling;
● The corrugated pipes produced by this equipment is resistant to high temperature, corrosion, abrasion and high strength. It is used in the fields of electrical threading pipe, automobile threading pipe, sheath pipe, machine tool products, packaged food machinery, electric locomotive, engineering installation, lamps, automatic instrumentation, etc.
Model | OD (mm) | Extruder | Extruder power | Max. Output (kg/hr) | Max.speed (m/min) |
SBG-600 | (P200-600 | SJ75/33 | 90KW | 750 | 4.2 |
SJ90/33 | 132KW | ||||
SBG-800 | <P200-800 | SJ90/33 | 132KW | 1100 | 4.2 |
SJ120/33 | 200KW | ||||
Conical Twin screw extruder Series : | |||||
Model | OD (mm) | Extruder | Extruder power | Max. Output (kg/hr) | Max.speed (m/min) |
SBG-600 | (P200-600 | SJZ80/156 | 55KW | 750 | 4.2 |
SJZ80/156 | 75KW | ||||
SBG-800 | 4200-800 | SJZ80/156 | 75KW | 1100 | 4.2 |
SJZ92/188 | 110KW |
