원래 장소: | 중국 |
브랜드 이름: | Shandong Huasu Brand |
인증: | CE, ISO9001 |
모델 번호: | SBG 350 |
최소 주문 수량: | 1개 세트 |
---|---|
가격: | Negotiable |
포장 세부 사항: | 표준은 패키징합니다 또는 필요에 따라 |
배달 시간: | 45 일로 일합니다 |
지불 조건: | 전신환 |
공급 능력: | 40은 / 달에서 설정합니다 |
모델: | 후아수 SBG 350 | 관 범위: | 150mm-350mm |
---|---|---|---|
생산 속도: | 1.5m/min | 속도 유형: | 표준 속도 |
장점: | 알맞은 가격 | 더 많은 타입: | 고속 모형 |
하이 라이트: | PLC Control HDPE Pipe Production Line,50m/Min HDPE Pipe Production Line,Energy Saving Dwc Pipe Machine |

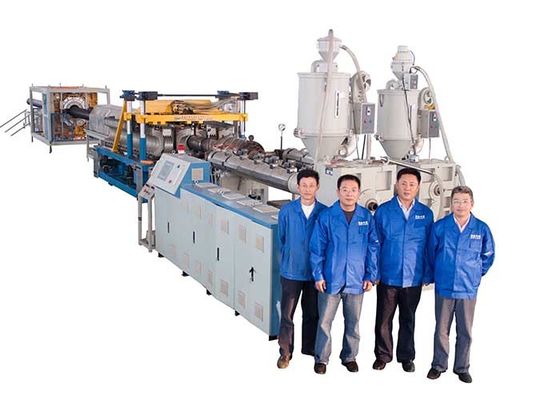

Energy Saving And Fast Speed HDPE Pipe Production Line Manufacturer In Shandong Province
High speed HDPE pipe line adopts specially designed high efficient screw and barrel, which are our company independent design, with completely independent intellectual property rights.
Line Model | Screw Diameter | L/D | Production Speed | Nominal Power |
SJ-75 | Ф75mm | 36:1 | 50m/min | 155KW |
SJ-60 | Ф60mm | 36:1 | 35m/min | 104KW |
SJ-80 | Ф80mm | 33:1 | 25m/min | 112KW |
SJ-65 | Ф65mm | 33:1 | 15m/min | 76KW |
Please notice that all the machine can be customized.
Contact Ellen Liu or Xiaoyan for more information.
● Die Head
◎ The specially designed spiral pressure-storage die head ofthis HDPE pipe making machine effectively overcomes the instantaneous fluctuation of extrusion pressure,
◎ Realizing high speed and constant pressure extrusion of materials.
● Automatic Coiler
◎ The automatic double working position pipe coiler of this HDPE pipe machinery can realize automatic reel changing according to set length, automatic cutting and coiling.
◎Using servo controlled high precise traversing device and tension control device.
◎ SIEMENS PLC independent control.
Siemens PLC Control System
◎ The production line tomake HDPE pipe adopts original new generation PLC control system.
◎ Adopting Multi-point closed loop control system, ensuring high speed synchronous control and reliable operating.
